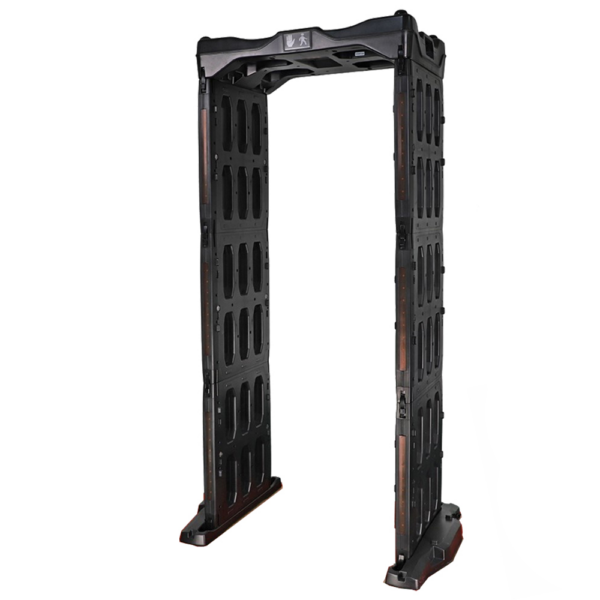

HPC-C900(3 zones)
HPC-C900(3 zones)
Walkthrough Metal Detector
HPC-C900(3 zones)

HPC-C900(3 zones)

SKU: HPC-C900

Multi-zones Protable Walk Through Metal Detector Door frame Archway Metal Detector

Add to quote
Main features
Multi-brands compatibility Can be added to existing security checkpoints without having to replace other existing units.

Includes multiple channels and 10 selectable operating frequencies.
Optimum performance Scientifically engineered to meet the needs of airports, courthouses, prisons, schools, facilities,

special events, mass transit,and other applications which need security inspection.
Detection performance The device is portable walk-through metal detector that accurately identifies ferrous and nonferrous weapons utilizing superior target detection.
DSP processing Digital Signal Processor (DSP) based, the device offers greater sensitivity, noise immunity, metal discrimination, detection uniformity, and overall product reliability.

The device pinpoint targets the left, center and right side of the body from head to toe.
Strong anti interference performance With advanced analogue and digital filtering, the device eliminates potential electrical interference from the environment to ensure detection accuracy. This enables x-ray systems and the device to be placed in close proximity(20CM) to each other.
Tamper-proof Double access protection.All settings are secured with a key lock and two levels of
access codes. Further security is accomplished with a cabinet lock that prevents
unauthorized access to physical cables, connectors and electronics.
Coil design An improved coil design ensures the smallest metals are detected regardless of shape or orientation.
Pacing lights The device also features pacing lights with symbols “Wait” or “Proceed” for timed precision.
Health care Harmless for cardiac pacemaker wearer, pregnant women ,magnetic media ,etc.
Technical parameters
Sensitivity From 0-299, total 300 adjustable levels.
Zone indications 3 independent zones.
Weatherproofing Meets IP43 standards. For moisture, foreign matter protection.
Overhead control unit All electronics-LCD, alarm light,LED bar graph, control touch pads-integrated to eliminate wire exposure.
Self diagnostic program Complete and automatic when power on.
Zone sensitivity boost Adjustable in 6 level areas.
Battery pack 15 hour backup available.
Warranty 2 years, Limited parts/labor.
Channel dimensions Width :800 mm.

Height: 2100 mm.

Depth: 580 mm.
External dimensions Width :970 mm.

Height: 2250 mm.

Depth: 580 mm.
Shipping dimensions 1070*690*710 mm.
Shipping weight Net weight:43KG   Gross weight:57KG.
Temperatures operating -20º C~ +50º C. Humidity to 95% non-condensing.
Temperatures

storage

 -40º C~ +70º C. Humidity to 95% non-condensing.
External power supply AC110~240V±20%, 50/60Hz.
Power consumption 30W±10%.
Certificates Meets electrical safety and compatibility requirements for CE (EMC Directive~ 2014/30/EU and LVD Directive~2014/35/EU Low Voltage), FCC (Directive~Part15B:2012),ROHS (Directive~2011/65/EU).
Control outputs Solid state switches (low voltage AC or DC) for operating external alarms and control devices.
